Declutch Override Gear Box
 |

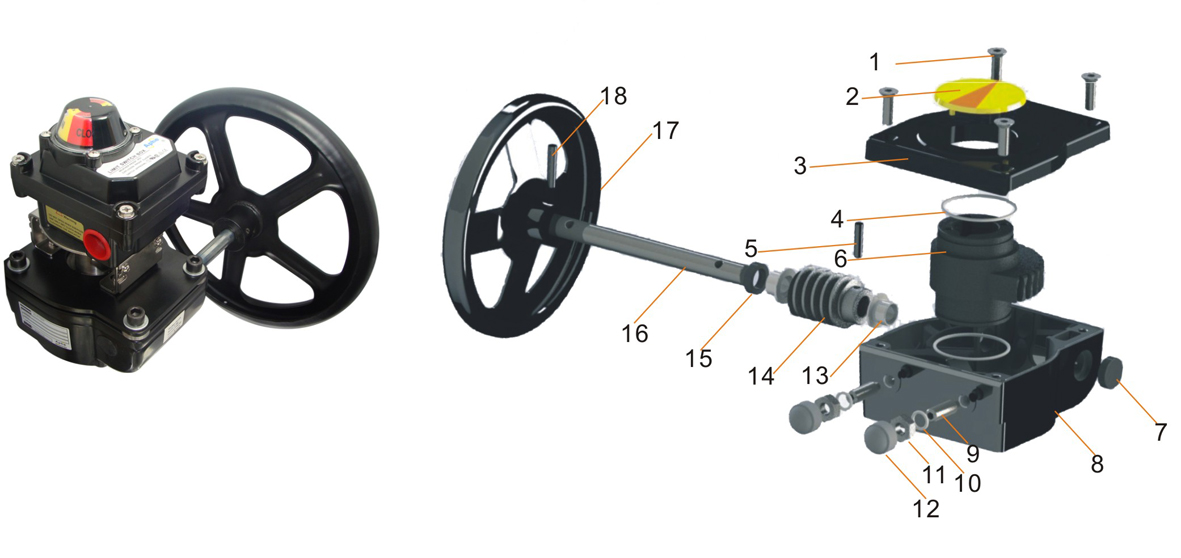

Structure & Material：
|
No. |
Parts |
QTY |
Material |
|
1 |
Screw |
4 |
Stainless steel |
|
2 |
Indicator Cover |
1 |
Plastic |
|
3 |
Cover |
1 |
Aluminum |
|
4 |
O-ring(Cover) |
2 |
NBR |
|
5 |
Key |
1 |
Carbon steel with black oxidation |
|
6 |
Worm |
1 |
Nodular cast iron |
|
7 |
O-ring(Back) |
1 |
NBR |
|
8 |
Body |
1 |
Aluminum |
|
9 |
Adjust screw |
2 |
Carbon steel with black oxidation |
|
10 |
Gasket(Adjust screw) |
2 |
Carbon steel with zinc coating |
|
11 |
Nut(Adjust screw) |
2 |
Carbon steel with zinc coating |
|
12 |
Cover of Nut(Adjust screw) |
2 |
NBR |
|
13 |
Bearing |
2 |
Powder metallurgy |
|
14 |
Worm |
1 |
Carbon steel #45 |
|
15 |
O-ring(Front) |
1 |
NBR |
|
16 |
Worm shaft |
1 |
Carbon steel #45 /Stainless steel |
|
17 |
Handle wheel |
1 |
Carbon steel with epoxy coated |
|
18 |
Key |
1 |
Carbon steel with black oxidation | |
|
 |
|
 |
|

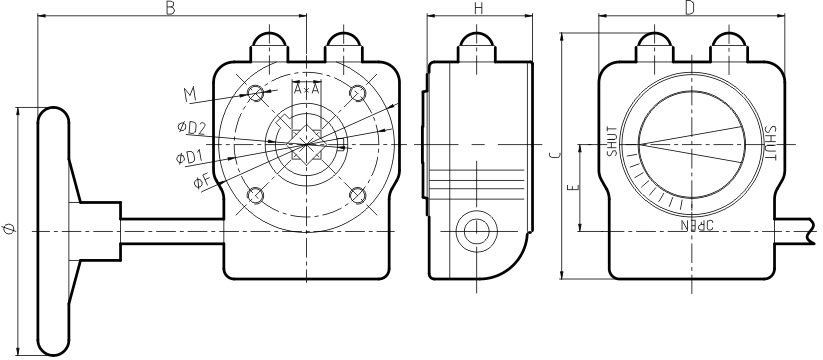

Dimensions：
|
Model |
Square |
ISO 5211
Flange
Type |
ΦISO
Holes |
Ø |
Outptut/Input
Torque Ratio |
Reference
Output
Torque(Nm) |
Butterfly
valve |
Ball valve
Model |
WT(KG) |
|
20070 |
8/9/11/
14/17 |
F05,F07 |
50,70 |
140 |
1:9.6 |
180 |
32-150 |
50 |
1.2 |
|
20090 |
8/9/11/
14/17 |
F07,F09 |
70,90 |
200 |
1:12.5 |
300 |
32-200 |
63 |
2.1 |
|
20102 |
17/19/22 |
F07,F10 |
70,102 |
250 |
1:12.5 |
540 |
200-300 |
80 |
3.5 |
|
20125 |
17/19/22 |
F10,F12 |
102,125 |
300 |
1:12.5 |
675 |
250-350 |
100 |
4.8 |
|
20140 |
22/27 |
F14 |
140 |
400 |
1:10 |
1310 |
350-400 |
150 |
9.5 |
|
20140B |
22/27/
Ø50×14 |
F14 |
140 |
600 |
1:11 |
1790 |
400-450 |
200 |
11 |
|
20165 |
36/
Ø50×14 |
F16 |
165 |
600 |
1:19 |
3250 |
450-500 |
250 |
17.5 |
|
20254 |
Ø60×18/
Ø65×20/
Ø80×22 |
F16,F25 |
165,254 |
700 |
1:19 |
5500 |
600-650 |
300 |
28 | |
|
|
|
| Note: Contcet us for more details of technologue. |
|
|
|
